IDS Tridi

The TRIDI 3-Wave Diode Laser from IDS is a next-generation hair removal and skin conditioning workstation. By delivering three synchronized wavelengths (755nm Alexandrite spectrum, 808nm Gold Standard Diode, and 1064nm Nd:YAG spectrum) simultaneously, TRIDI addresses the complete anatomical depth of hair follicles from superficial bulges to deep bulbs. Featuring an AI-powered Intelligent Hair Removal (IHR) interface, high-speed DynaMotion in-motion gliding at 10Hz, and the patented Tridi UP (Brightening, Tightening, Lifting) protocol, TRIDI combines speed, efficacy, and patient comfort.

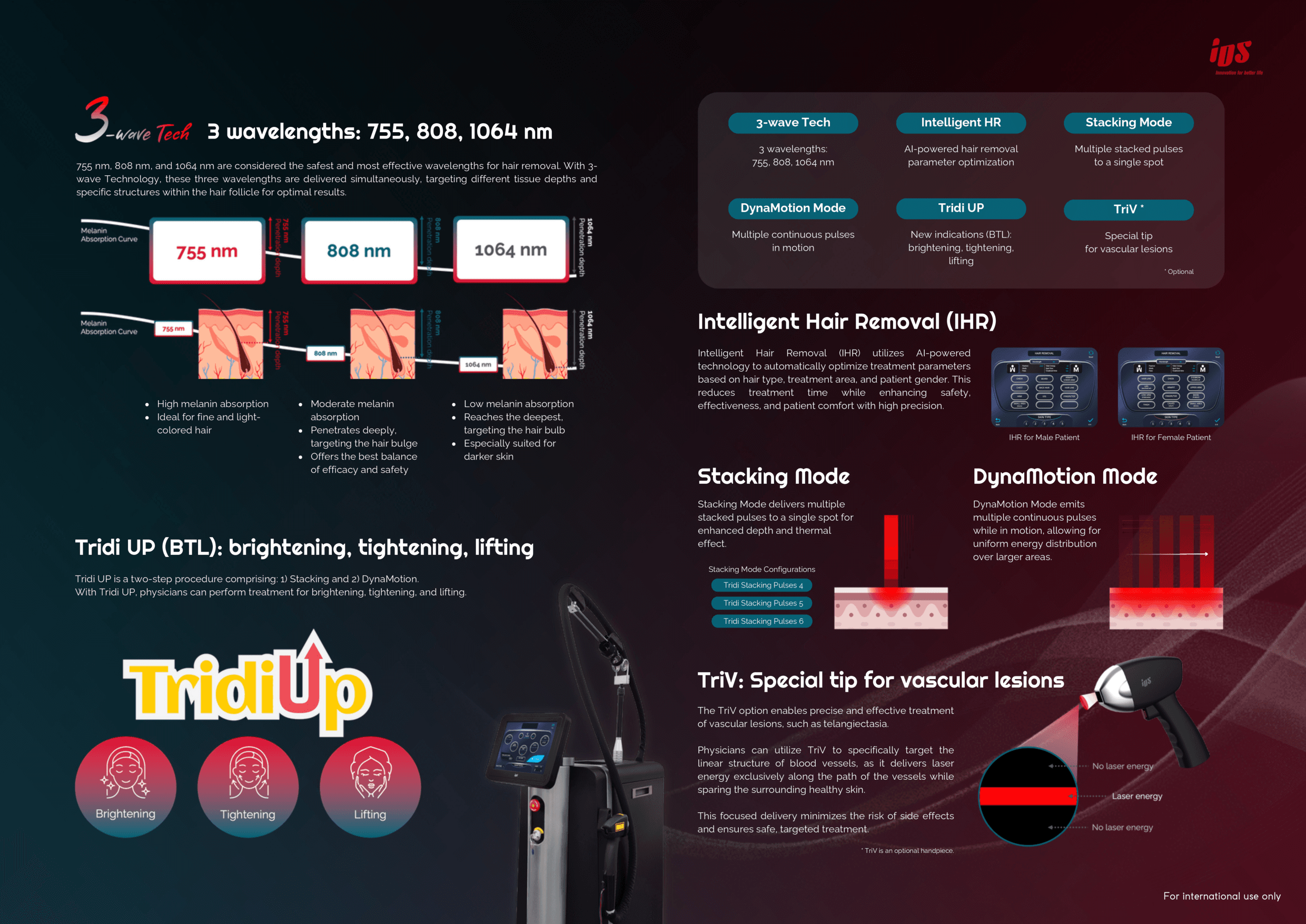

• Synchronized 3-Wave Technology (755nm + 808nm + 1064nm) emitted simultaneously
• 2,500W Peak Optical Power with sub-millisecond to 100ms pulse durations
• Intelligent Hair Removal (IHR) with AI-guided parameter selection by anatomical zone, skin type, and gender
• Dual Operational Modes: Stacking Mode (Pulses 4/5/6) and high-speed DynaMotion Mode (10Hz)
• Integrated Sapphire Contact Cooling with continuous 1°C epidermal protection
• Tridi UP (BTL) Protocol: Non-invasive brightening, tightening, and dermal lifting
• Optional TriV Handpiece with collimated beam for localized vascular and telangiectasia treatment

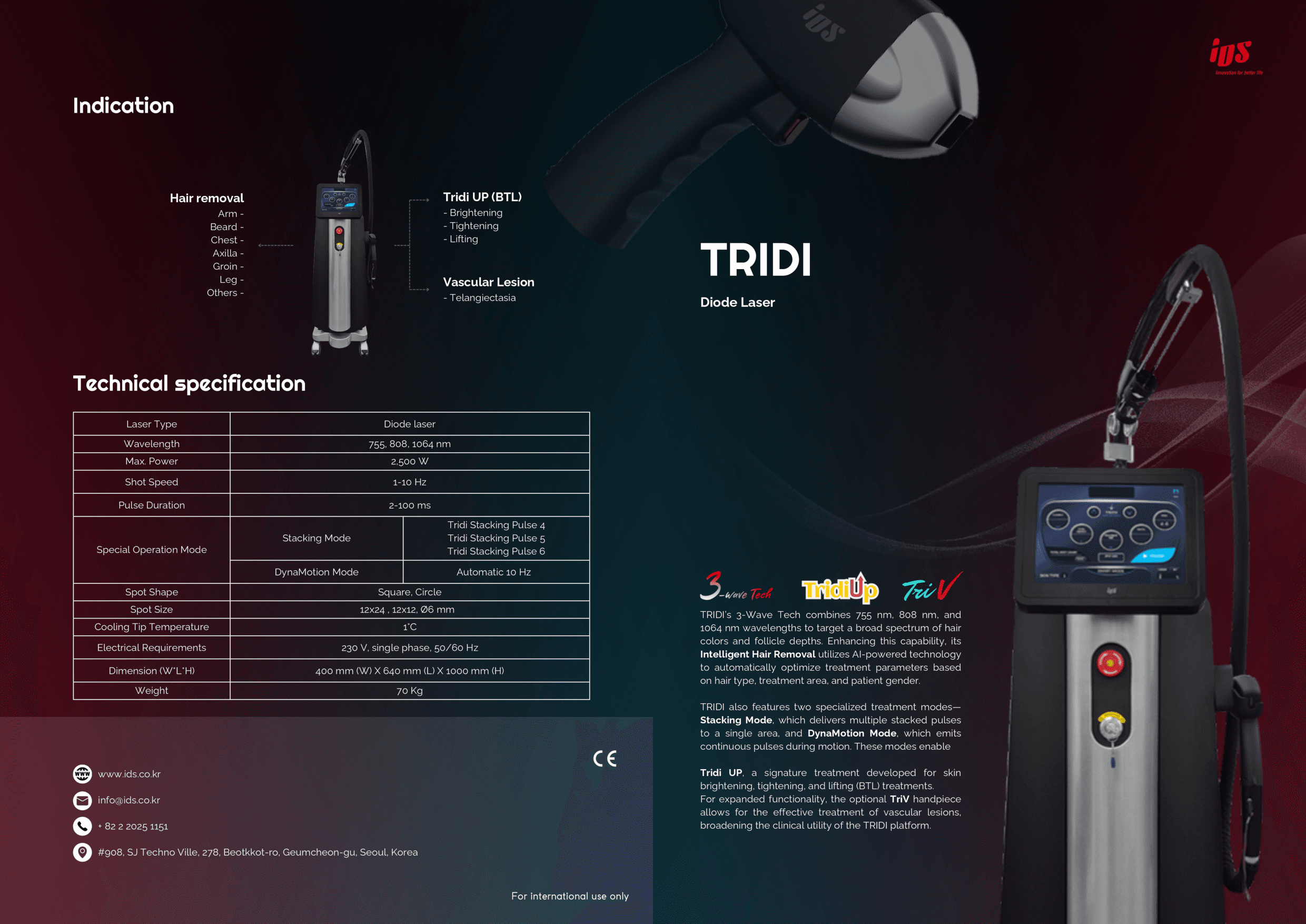

Laser Type

3-Wave Diode Laser (755 nm, 808 nm, 1064 nm)

Peak Power

2,500 W

Repetition Rate

1 – 10 Hz (DynaMotion Mode)

Pulse Duration

2 – 100 ms

Spot Shapes & Sizes

Square & Circle (12 × 24 mm, 12 × 12 mm, Ø6 mm)

Cooling Tip Temperature

Continuous Contact Cooling at 1°C

Electrical Requirements

230 V, Single Phase, 50/60 Hz

Dimensions & Weight

400 × 640 × 1000 mm, 70 kg

• Full-body Hair Removal (Arms, beard, chest, axilla, groin, legs, and delicate zones)
• Tridi UP Skin Revitalization (Skin brightening, pore refinement, dermal tightening & lifting)
• Vascular Lesions (Telangiectasia, facial redness via optional TriV handpiece)

• Safe and painless treatments with advanced 1°C continuous sapphire contact cooling
• Rapid treatment times covering full back or legs in under 15 minutes
• Effective across all Fitzpatrick skin types (I to VI) and fine, stubborn hairs
• Multi-purpose clinic ROI with both hair removal and Tridi UP skin tightening
